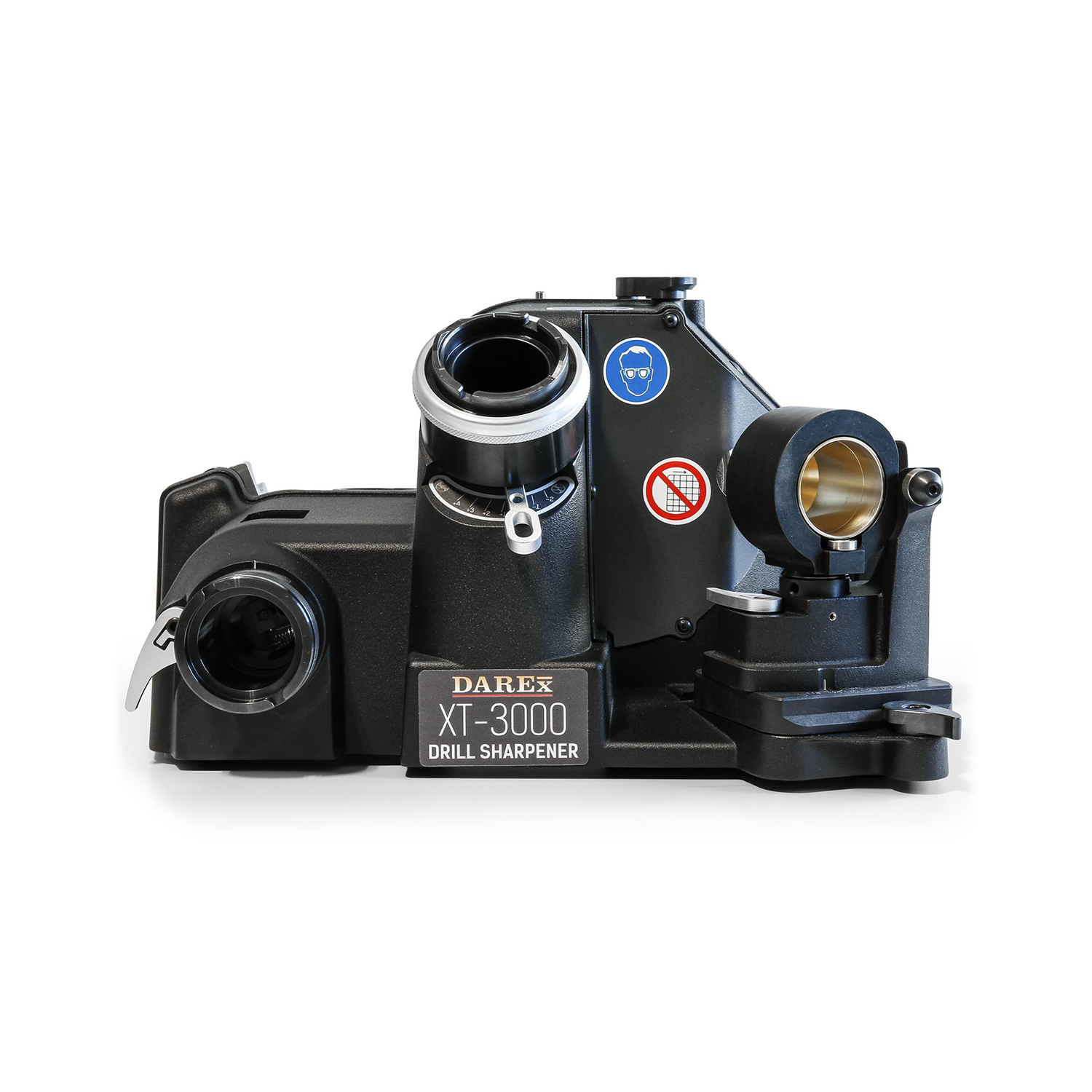

XT-3000 Drill Sharpener
The XT-3000 Drill Grinder and Sharpener is a workhorse sharpener which can be expanded to meet a variety of sharpening needs. If you want the right point for the job, but don’t want to become a tool and cutter grinding expert, the Darex XT-3000 is for you. You can sharpen in house for only pennies a drill. Assembled in the USA from US and imported parts.
30 day trial available – If you are not satisfied with your sharpener within 30 days of receiving it, contact us to initiate a return and all you pay is shipping. We want to be sure you get a product you love!
**30 day trial only available for purchases made directly through Darex IND, INC. 3rd party purchases are subject to the seller’s policies.
**Products purchased via financing are NOT eligible for 30 day returns.
Looking for XT-3000 attachments? Or to upgrade to an auto? Or need a new wheel? SHOP NOW
Want to add an extra year to your warranty?? Add our vacuum to your sharpener order! – CLICK HERE
$4,398.00
Description
XT-3000 Drill Sharpener Base Unit Specifications:
Ideal For: Shops that sharpen a variety of drill sizes and styles and want the advantages of a highly advanced manual drill and tool sharpener
Acceptable drill diameter: 3mm (.118, 1/8inch) – 21 mm (.826, 13/16 inch)
Acceptable drill length: Unlimited maximum, two inch minimum.
Duty Rating: Heavy duty
Grit Removal System: Optional vacuum
Cutting Tool Diameter: 1/8 inch – 13/16 inch (3–21 mm)
Operation Mode: Manual
Machine Weight: 68 lbs (31 kg)
Point Angles Sharpened: 118°–150° (90° option available)
Machine Size: 20″ x 20″ x 16″ (51 x 51 x 41 cm)
Point Styles Sharpened: Standard conic and split point
Sharpening Wheel Included:
Borazon (CBN) for HSS & cobalt (diamond option for carbide available)
Power: 2.5 amps at 115V, 1.6 amps at 230V; 1/4 hp (for international machines)
Options Available:
- Large drill attachment (21–30 mm)
- XY Table attachment
- Countersink attachment
- Brad point attachment
- Step drill attachment
- 90°–120° attachment
- Machine cover
- Vacuum (extends warranty by 1 year)
- 180-grit diamond wheel
- Diamond split point wheel

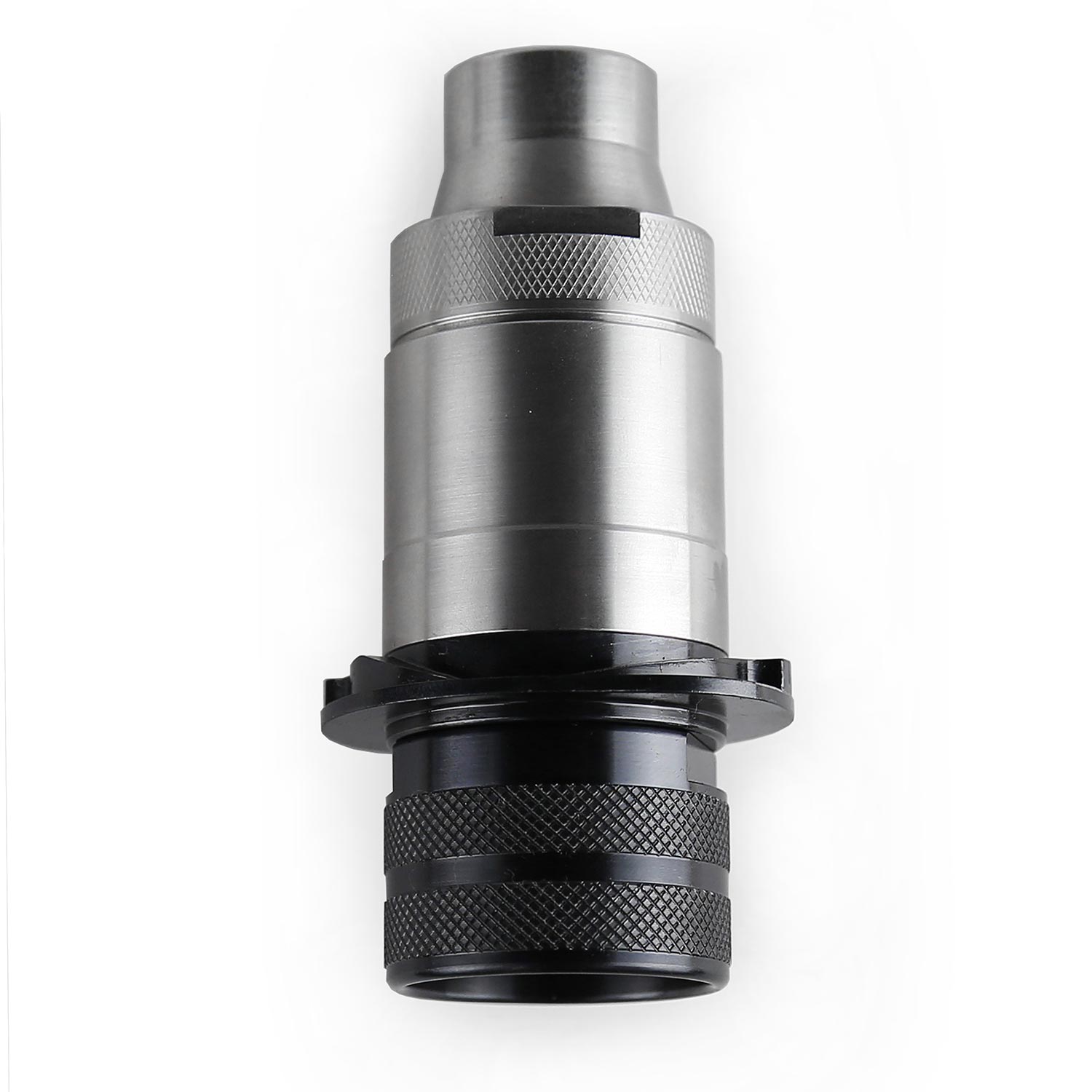

- 3–12 mm left-hand chuck
- 2–21 mm left-hand chuck
Click Here to Calculate Your ROI
Warranty
A 1-Year Warranty covers defects due to workmanship and design, excluding abrasives. Warranty valid in USA and Canada only.
NOTE: Using a 115V machine in a location with 230V power sources voids the warranty. For use outside North America, please visit our Where to Buy page to find a distributor in your country or region.
Questions?
We want you to get the right product for your needs. Contact us for more information.
Attachments
Parts & Attachments
$648.00

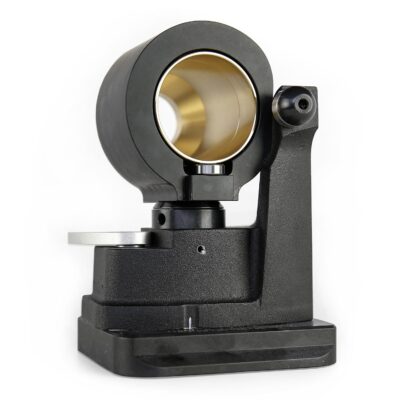

118°–150° Sharpening Fixture for the XT-3000 and XT-3000 Auto.
Parts & Attachments
$649.00
Countersink Attachment for the XT-3000 and the XT-3000 Auto
This attachment must be used in conjunction with the X-Y Table LEX100
Parts & Attachments
$848.00

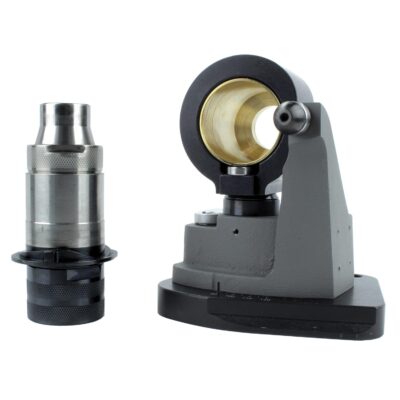

Large Drill Attachment for the XT-3000 and XT-3000 Auto. Sharpens drills from 21mm to 30mm (13/16” – 1 3/16”).
Parts & Attachments
Related Products
$479.00
180-Grit Diamond Sharpening Wheel for the XT-3000 and XT-3000 Auto Drill Sharpeners
$479.00

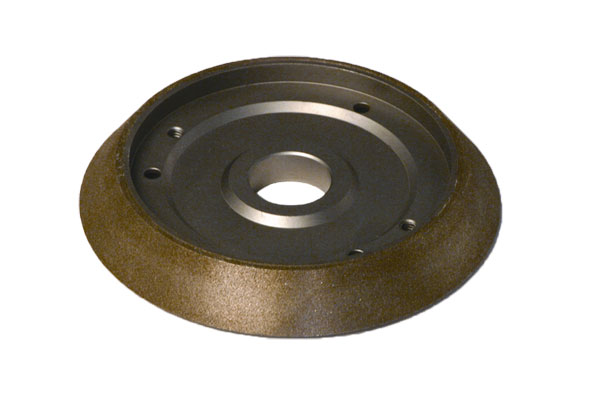

180-Grit CBN (Borazon) Sharpening Wheel for the XT-3000 and XT-3000 Auto Drill Sharpeners
$399.00

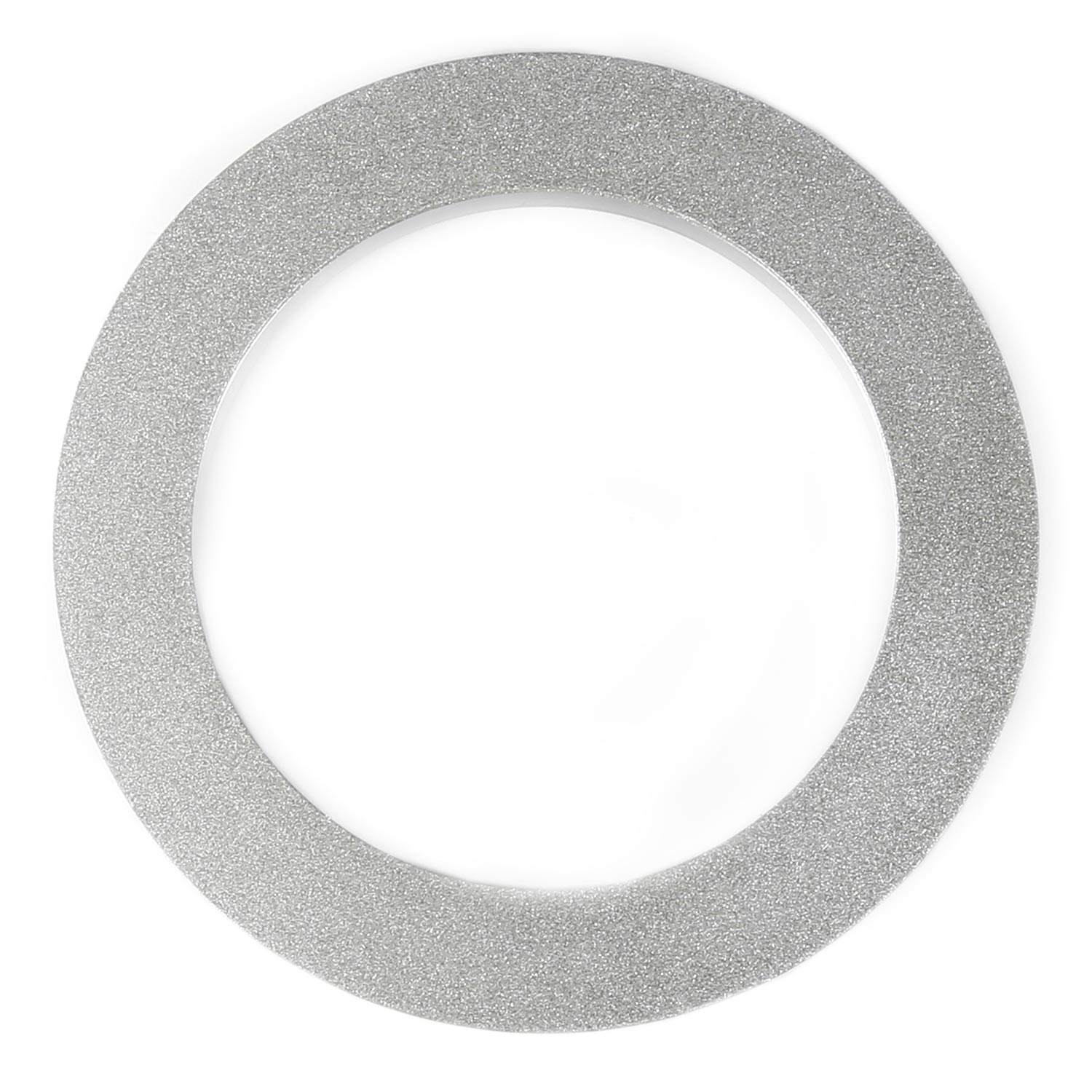

260-Grit Diamond Point-Splitting Wheel for the XT-3000 and XT-3000 Auto.
$399.00

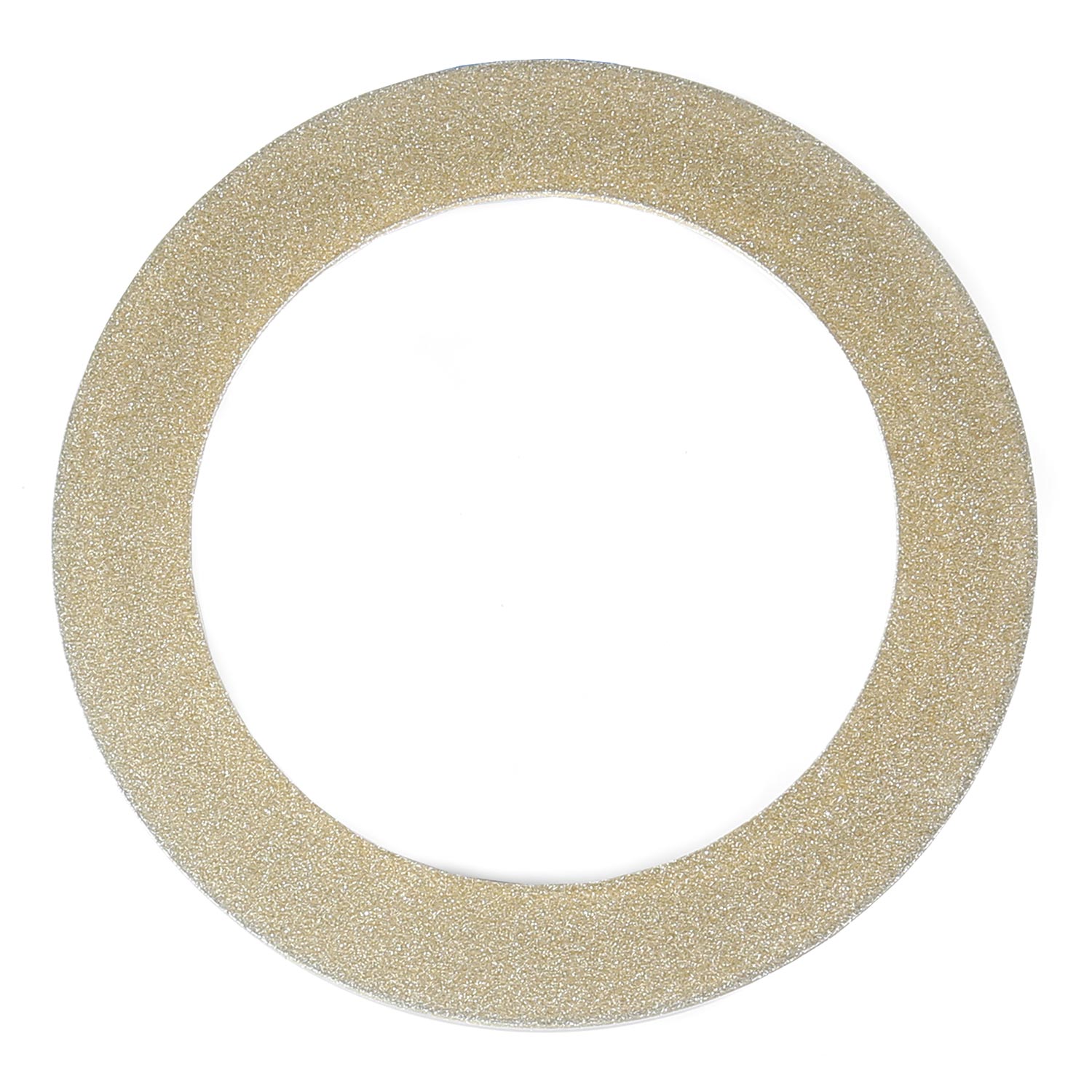

220-Grit CBN (Borazon) Point-Splitting Wheel for the XT-3000 and XT-3000 Auto.
$399.00

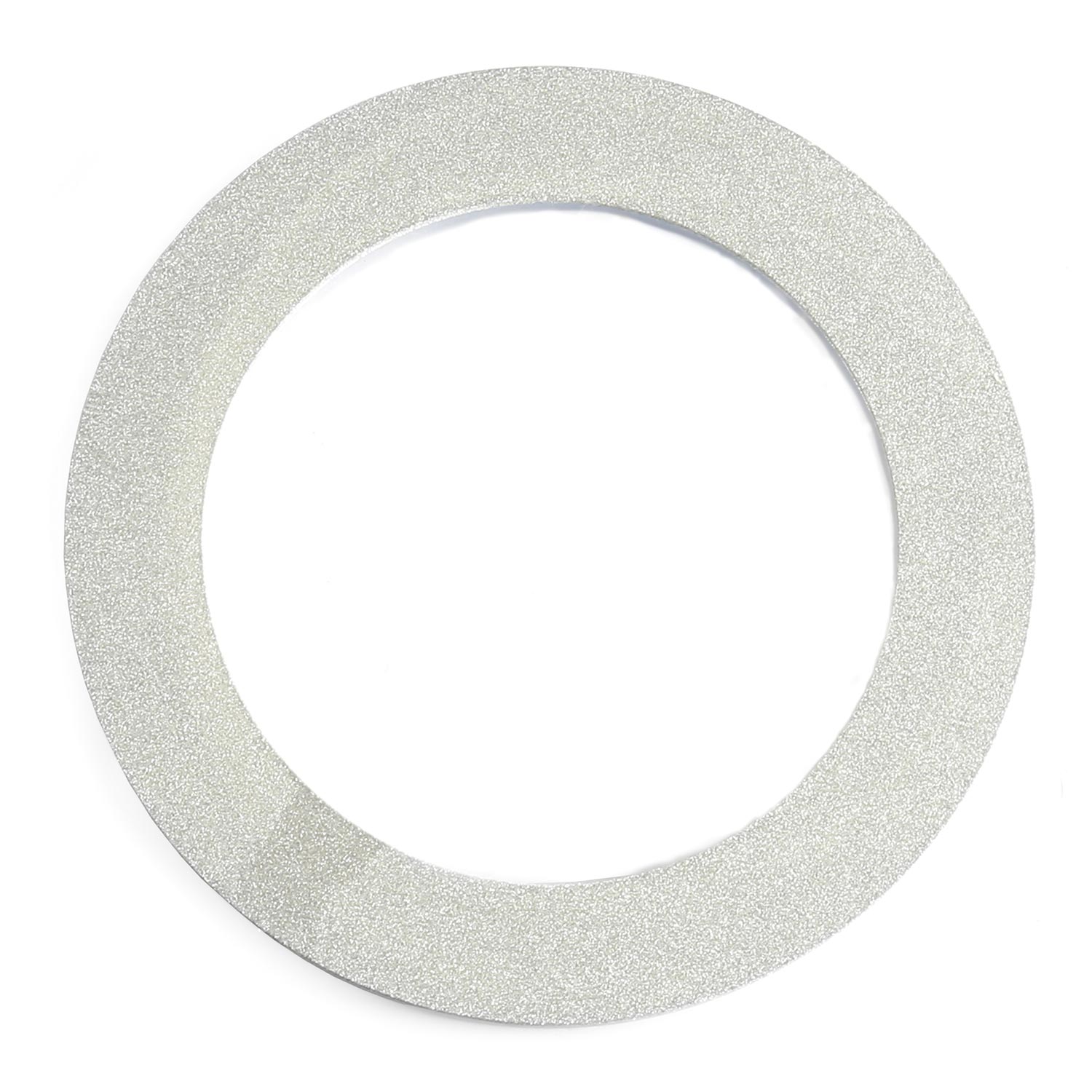

220-Grit Diamond Point-Splitting Wheel for the XT-3000 and XT-3000 Auto
$399.00

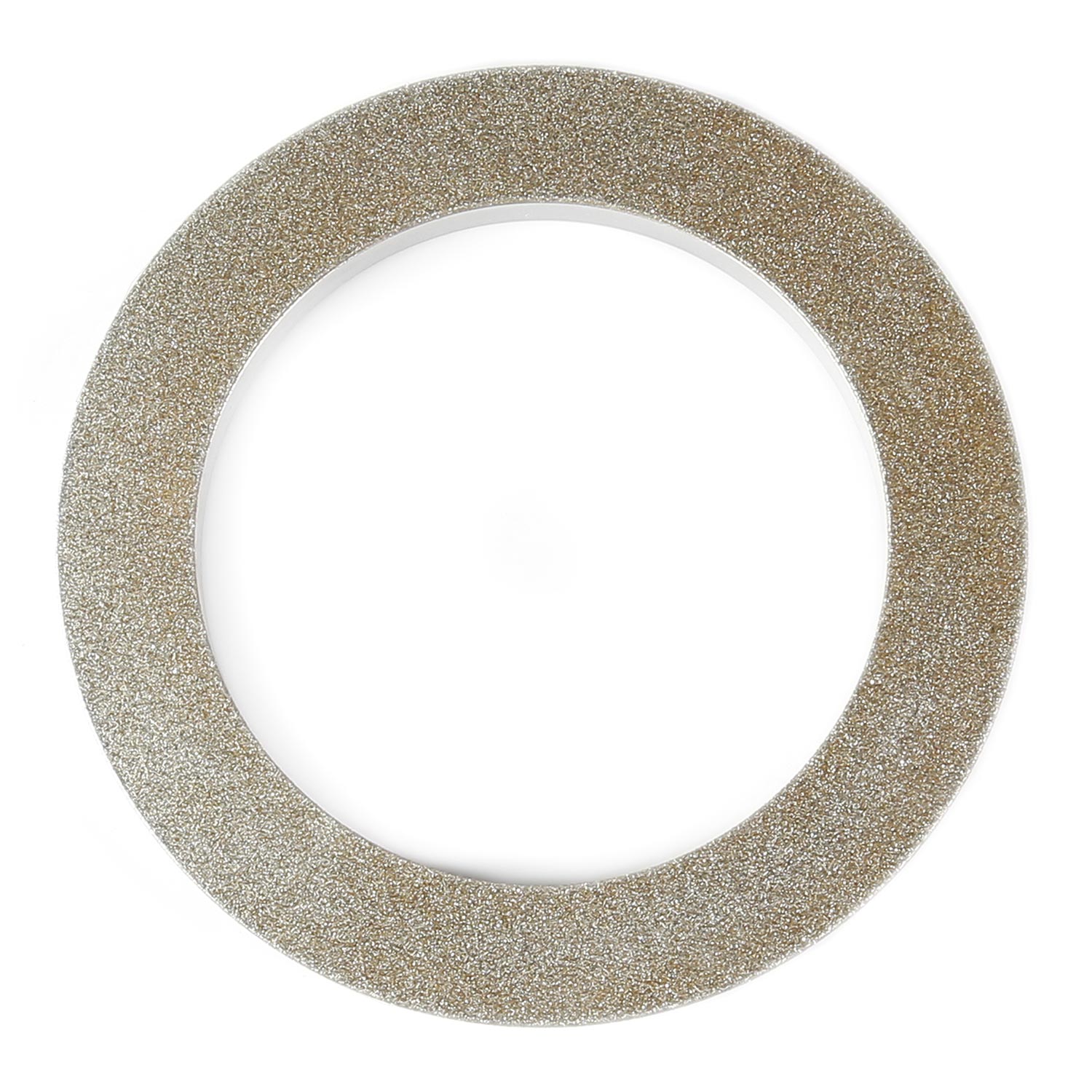

100-Grit CBN (Borazon) Point-Splitting Wheel for the XT-3000 and XT-3000 Auto.
$598.00

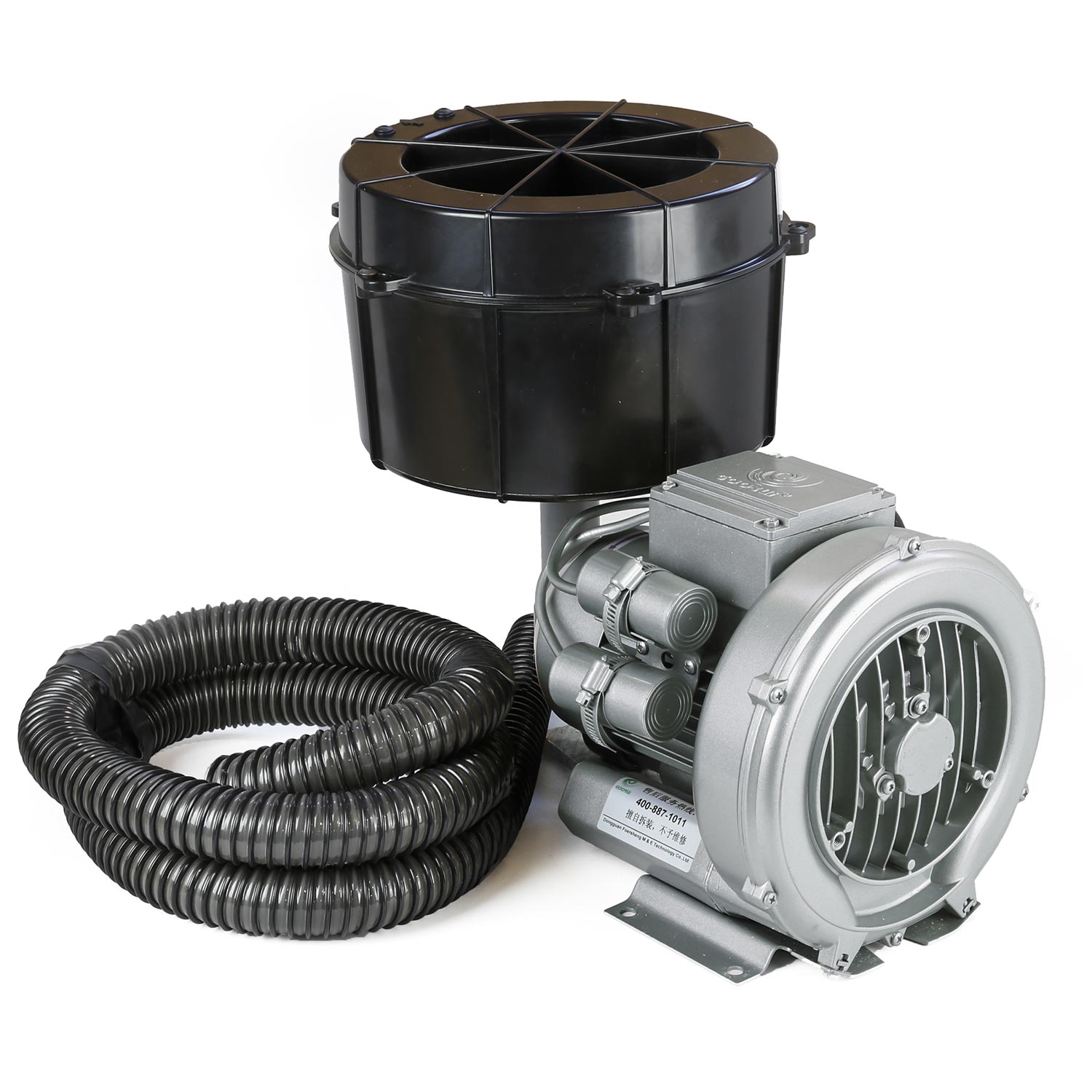

Complete Vacuum Assembly for the 115V V-390, XT-3000, XT-3000 Auto, and XPS-16+ industrial drill bit sharpeners.
Keeping your Darex drill sharpener free of grit is the single most important thing you can do to ensure that your sharpener remains in top condition, therefor minimizing repair costs for your industrial drill sharpener down the road. Our regenerative blower is quiet, powerful and connects directly to your sharpener. This vacuum is also rated for continuous duty and comes equipped with a HEPA grade filter to keep you safe from airborne grit. We’re so confident that our vacuum will keep your Darex drill sharpener clean, we’ll even add an extra year to your warranty if you purchase our vacuum along with your sharpener. (XPS-16+ excluded)
Need a powerful and quiet continuous duty vacuum for another application in your shop? Our regenerative blower can be adapted to meet your needs. Please reach out to our sales team at dxisales.com today with any questions.
$598.00

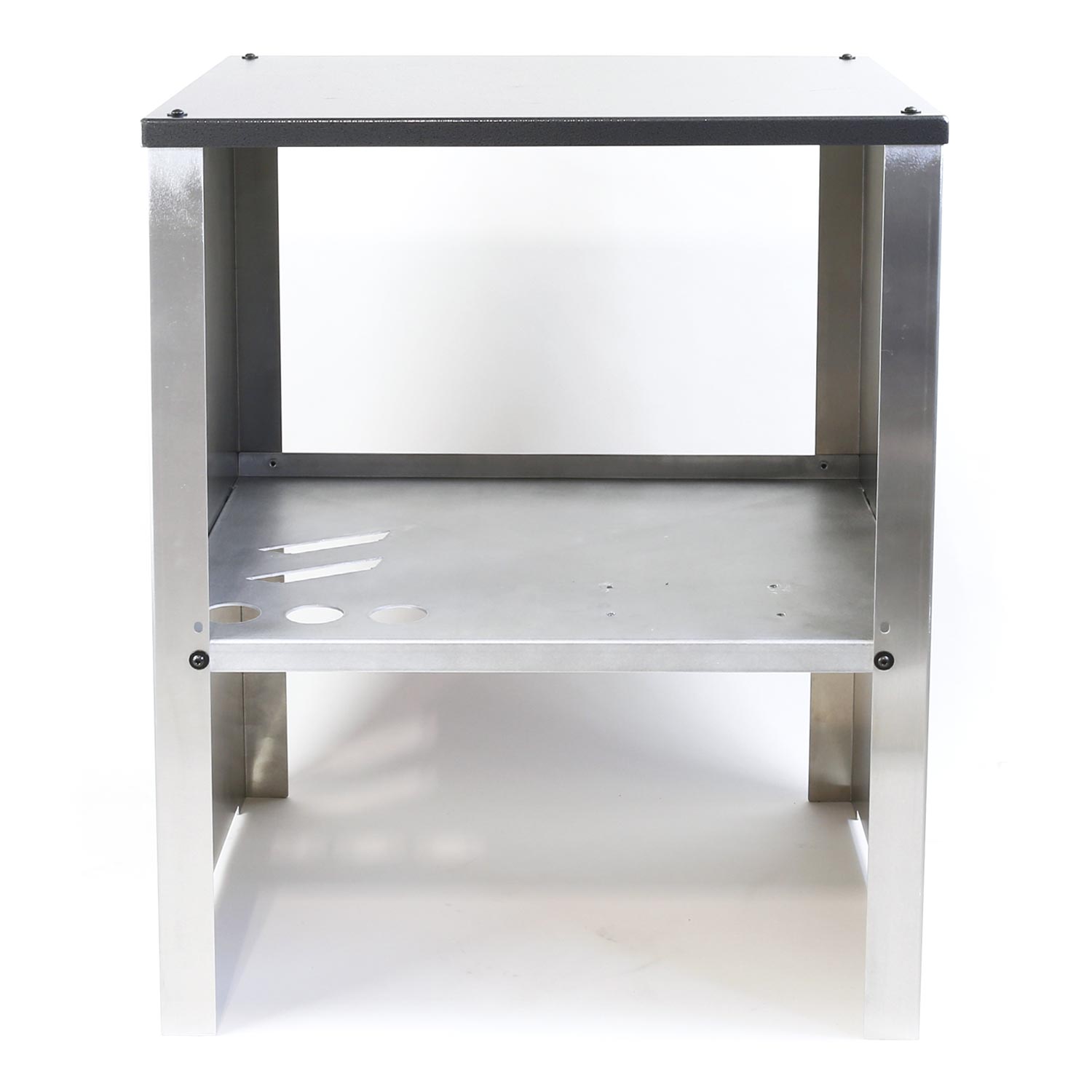

Aluminum stand for the V-390, XT-3000 (and Auto), XPS-16+ drill bit sharpeners. Accommodates vacuum, extra chucks and grinding wheels. Made in USA.
$1,098.00

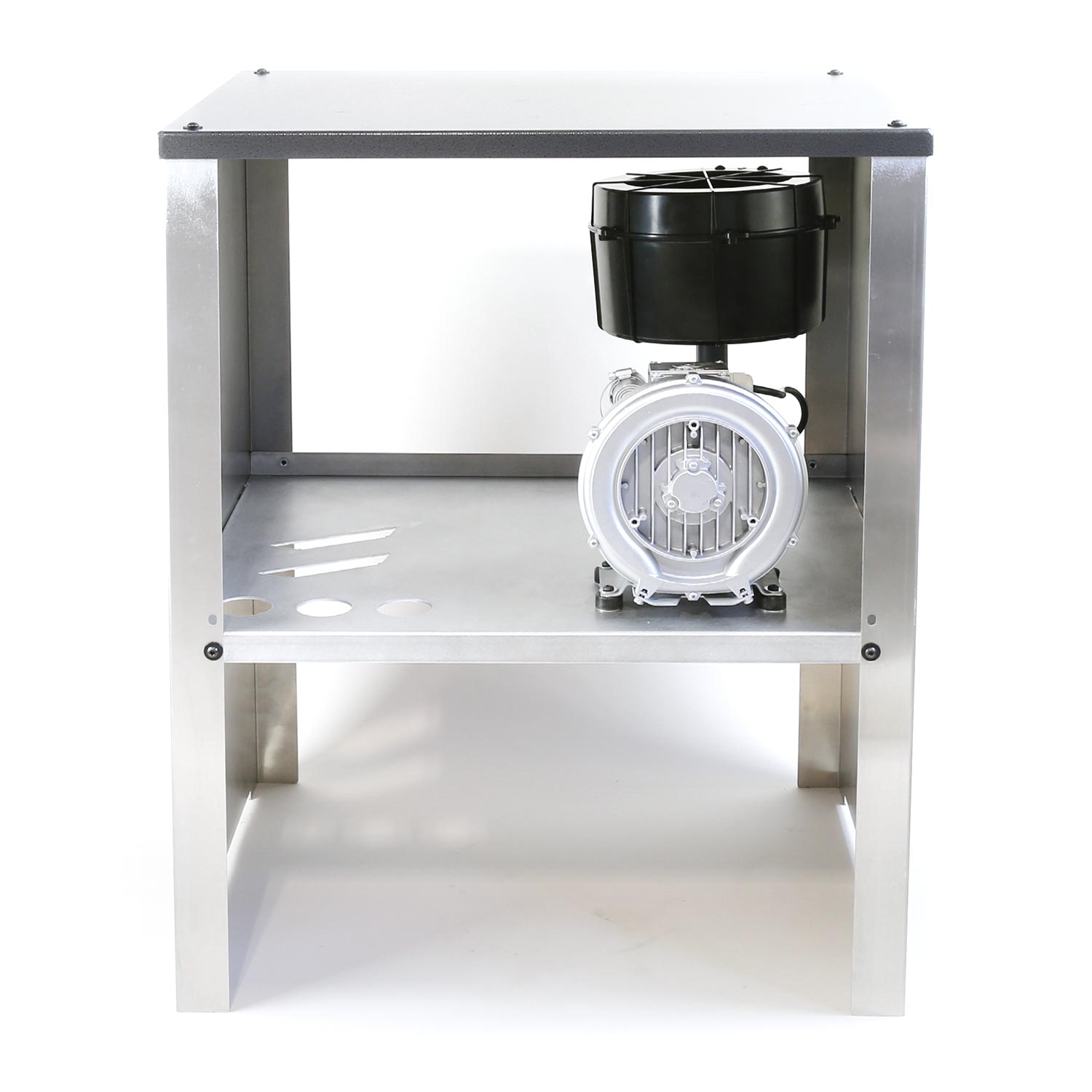

Aluminum machine stand and 115V Regenerative Blower Vacuum (Saves $100 and the extra shipping costs if purchased separately.) Made in USA.
Additional information
| Weight | 66 oz |
|---|
4 reviews for XT-3000 Drill Sharpener
You must be logged in to post a review.
Hunter Edwards –
Best investment our shop has made!
Before purchasing our XT 3000 we were not 100% sure what to expect. Nonetheless from the moment we opened the first box upon receiving our XT 3000 we were impressed. The quality, durability, and ease of use is amazing. Within the first week of owning this machine we have sharpened over 200 drill bits and 30 countersinks. For the price, you get what you pay for. Over time one of these will pay for itself in ANY shop.
Hunter Edwards –
The XT 3000 is great!
Before purchasing the XT 3000 our company was spending almost double the cost of the sharpener in drill bits a year. We were not sure what to expect as we have only owned a drill doctor before. Right as you open the box on the XT 3000 you know that it is a well built machine. The quality, durability, and ease of use is what makes the XT 3000 worth the price. We have sharpened hundreds of drill bits and counter sinks on ours, and it is still doing just as good as it did on the first one.
HW Spring Prairie –
This machine has awesome performance and is a excellent drill and time saver….
We purchased the XT-3000 a month ago and it has reached its expectations 100%. The quality and durability of the machine is just amazing. We have run about 200 drill bits through it with a smile and it is still doing just as good as it did on the first one….. The drills are so perfectly sharpened and split that they drill better than a brand new one. I think the machine itself and customer Service of Darex is the best and worth its price….The quality, dependability, and ease of use is what makes the XT 3000 a quality investment…
Giddings Mouthpieces –
Fantastic Machine
These machines will make your drills cut better than new! I had some technical questions when I first started sharpening my drills and the phone tech support was very helpful. They got me set up and running in no time and I’m very pleased with how well my drills work.
